Welcome to Smart Control’s documentation!

Contents:

Quick launch

First add to your project folder the file Smart_Control.NET_wrapper.dll.

Here is some quickstart functions to begin with:

  • Stitching

    To use the stitching function on a given folder, call (here for C#):

    Smart_Control.NET_wrapper.system.Network.stitch_folder(String path)

    It will return a Bitmap image of all the images stitched together.

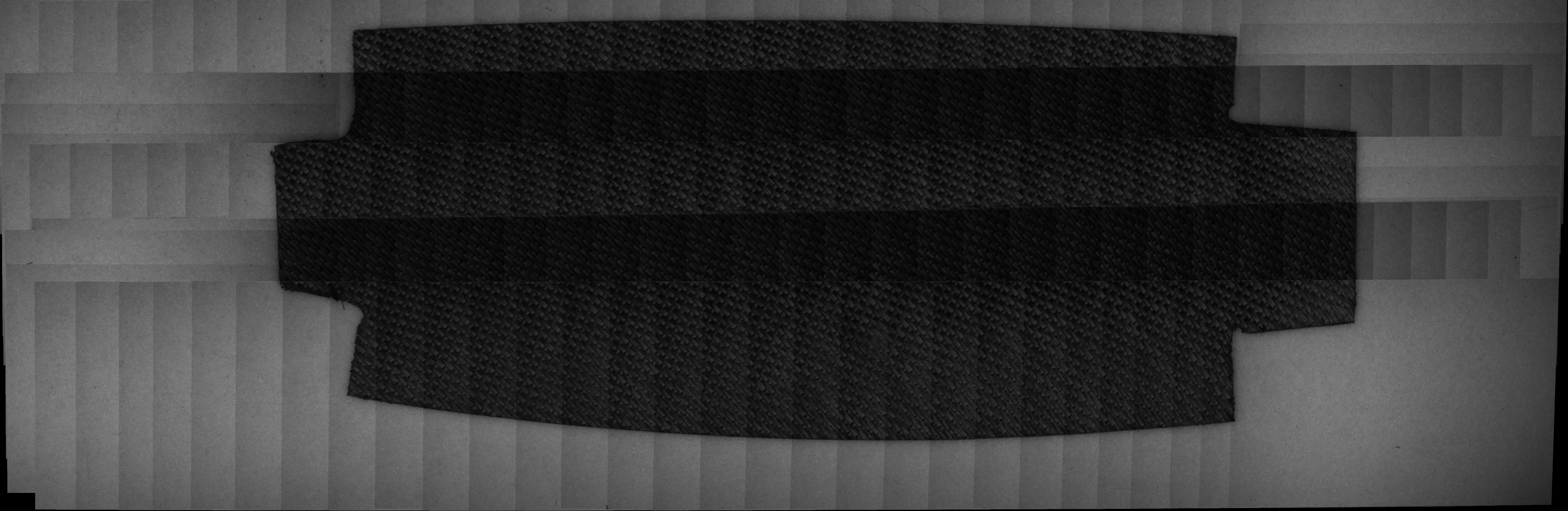

    _images/stitching.png

  • Fiber orientation

    To use the fiber orientation function on a given image, call (here for C#):

    Smart_Control.NET_wrapper.system.Network.FiberOrientation(Bitmap image)

    It will return the angle and the rotated Bitmap image.

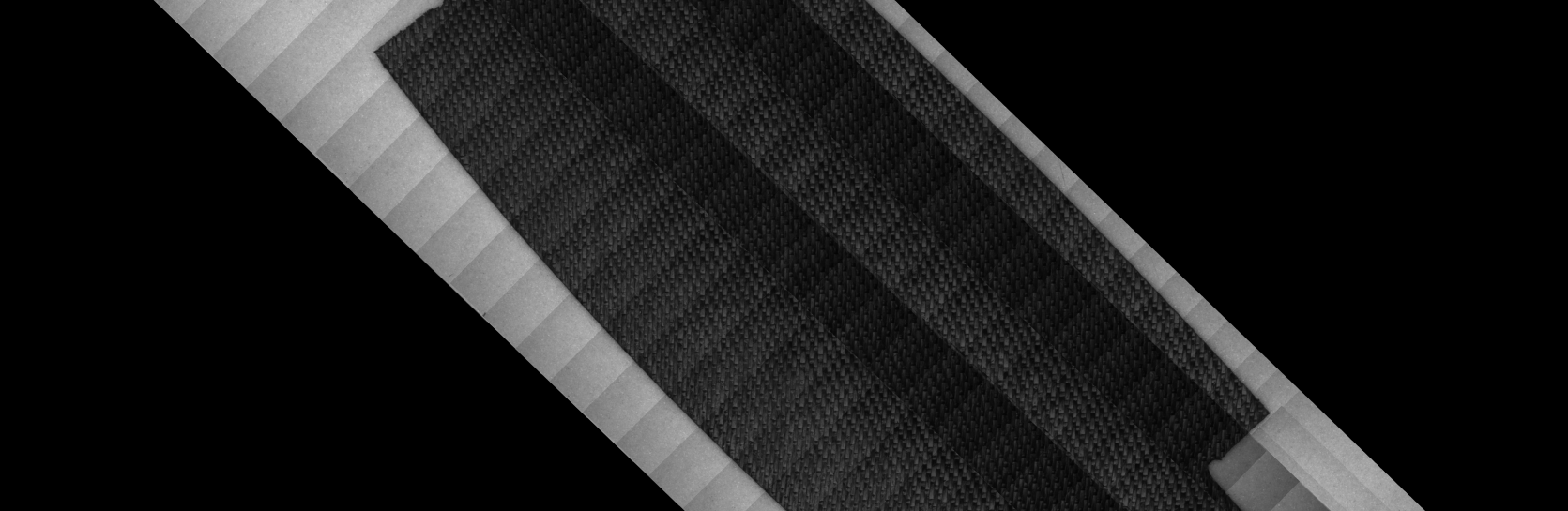

    _images/orientation.png

  • Plies detection

    To use the plies detection function on a given image, call (here for C#):

    Smart_Control.NET_wrapper.system.Network.OneShotDetectionPly(Bitmap image)

    It will return a list of the detected plies and an image with detected plies drawn.

  • FOD detection

    To use the FOD detection function on a given image, call (here for C#):

    Smart_Control.NET_wrapper.system.Network.detectFOD(Bitmap image)

    It will return a boolean set to true if a FOD has been detected and an image with a drawn square on detected FOD.
